17 SCFH oxygen production at 50 PSI is produced by the Reliant oxygen concentrator module.
The Reliant is an oxygen generator ideal for use in many applications. The Reliant’s ability to deliver up to 95% oxygen concentration at flows of up to 17 SCFH (0.44 Nm3 /hr or 8 LPM) make it a great fit for commercial uses requiring up to 50 psig (345 kPa or 3.45 barg).

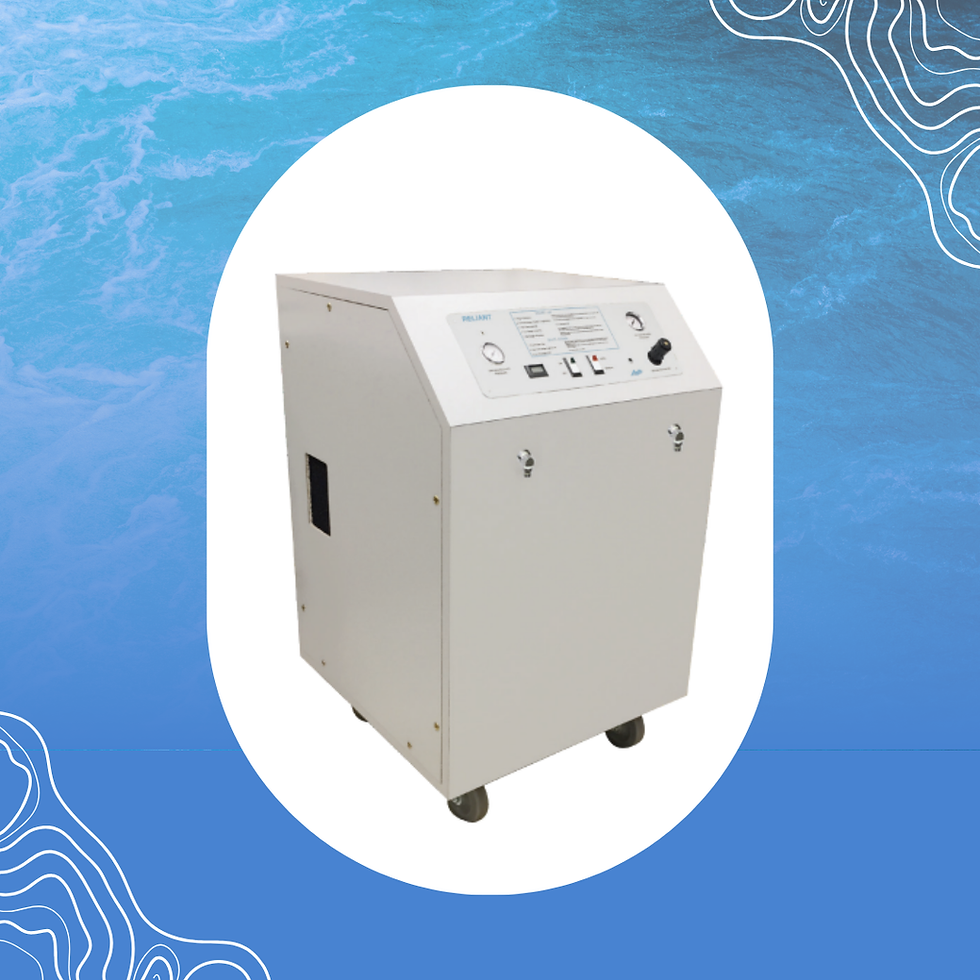

Reliant
Product Flow 17 SCFH Product Pressure 50 psig Product Concentration Up to 95% Product Dew Point -100°F (-73°C) Dimensions (W x D x H)
(Nominal)
22.5 x 24.5 x 36.25 in
(57.2 x 62.3 x 92.1 cm)
Weight 175 lb (79 kg) Physical Connections
Product Gas Outlet
B size oxygen demand valve Sound Level 58 dBA @ 1 meter,
open field conditions
Ambient Operating
Conditions
Locate the oxygen concentrator
in a well-ventilated area that is
protected from weather
elements and remains between
40°F (4°C) and 112°F (44°C)
Control Power Requirements
(Single Phase)
120 V ±10%, 60 Hz, 6.0 A Typical Power Consumption 680 W 60 Gallon Oxygen Receiver
(Optional)
Dimensions (Dia. x H) 26 x 52 in (65 x 131 cm) Weight 159 lb (72 kg)
