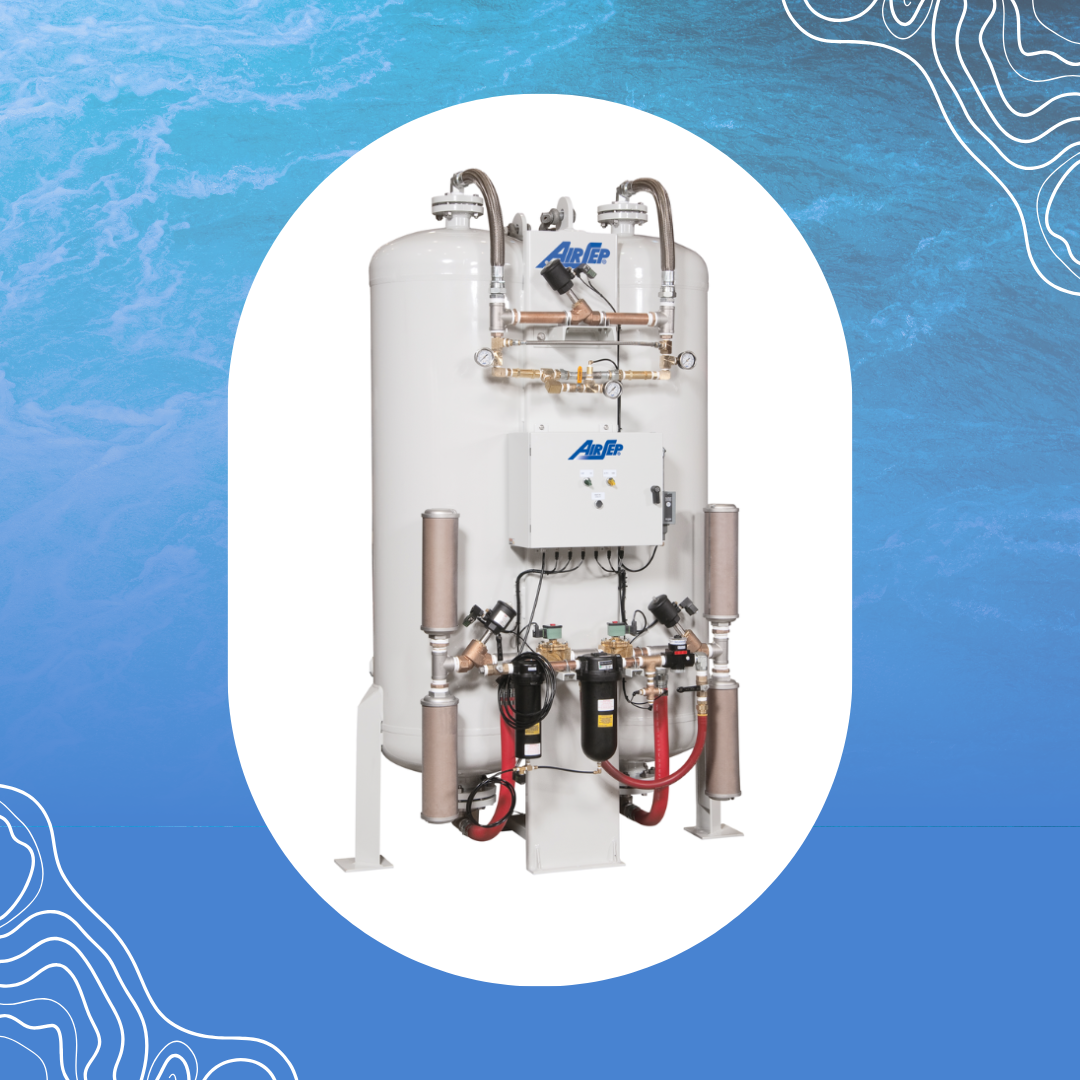

AS-L Oxygen Generator will produce 1000-1300 SCFH oxygen at 95% ± 1% purity at 45-65 PSI of pressure.
Details:
AS-L Oxygen Generator is an industrial oxygen concentrator great for continuous oxygen production. AirSep Alpha-Series Oxygen Generators produce from 20 to 5,000 cubic feet of oxygen per hour at up to 95.5% oxygen concentration. When electricity and a source of compressed air is supplied, these dependable machines can provide oxygen for any application. This compressed air is separated by Pressure Swing Adsorption (PSA).
AS-L
Product Flow 1,000 – 1,300 SCFH Product
Pressure
45 – 65 psig Product
Concentration
Up to 95% Product Dew Point -100°F (-73°C) Dimensions (W x D x H)
(Nominal)
62 x 40 x 100 in
(158 x 102 x 254 cm)
Weight 3,400 lb (1,542 kg) Physical
Connection
Compressed
Air Inlet-1” FNPT
Product Gas
Outlet-¾” FNPT
Ambient Operating
Conditions
Locate the oxygen generator
in a well-ventilated area that
is protected from weather
elements and remains
between 40°F (4°C)
and 104°F (40°C)
Storage Temperature:
-13ºF (-25ºC) to 131ºF (55ºC)
Humidity:
0-90% (non-condensing)
Feed Air
Requirements
Clean and Dry “Plant Air”
(Class 5.6.4 per ISO 8573.1)
Pressure: 90 psig
(621 kPa or 6.2 barg) minimum
Temperature: 122°F (50°C) maximum
Control Power
Requirements
(Single Phase)
120 V ~ ±10%, 50/60 Hz, 3.0 A or
220 V ~ ±10%, 50/60 Hz, 1.0 A
NRTL Certifications
and Approvals
China Pressure Vessel,
ASME Section VIII Division 1,
CAN/CSA-C22.2 No. 61010-1-12,
ANSI/UL Std. No. 61010-1:2012
(for 120 V configurations only)
Oxygen Receiver Tanks
Sizing Requirement
290 Gallon-
For flows up to 1,199 SCFH
400 Gallon-
For flows above 1,199 SCFH
Dimensions (Dia. x H) 290 Gallon-
37 x 80 in (94 x 202 cm)
400 Gallon-
36 x 103 in (91 x 262 cm)
Weight 290 Gallon-
500 lb (227 kg)
400 Gallon-
600 lb (272 kg)
- Produces oxygen from an independent compressed air source
- Microprocessor controlled
- Low operating cost
- Automatic and unattended operation
- Easy to install and maintain
- NEMA 4 Touchscreen control panel with integrated oxygen concentration monitor (available on some models)
- Cutting/Brazing/Soldering
- Environmental Remediation
- Fish Farming
- Glass Work/Blowing
- Ozone (Generator) Feed Gas
- Thermal/Chemical Oxidation
- Waste/Water Treatment
290 Gallon Oxygen Receiver
[for flows up to 1,199 SCFH (31.52 Nm3/hr)]
$8,684.00 400 Gallon Oxygen Receiver
[for flows above 1,199 SCFH (31.52 Nm3/hr)]
$10,278.00 Accessory Kit
(interconnecting hoses/fittings &
oxygen regulator)
$2,521.00 290 Gallon Air Tank, 110/120 V, 50/60 Hz $8,260.00 290 Gallon Air Tank, 220/240 V, 50/60 Hz $8,255.00 400 Gallon Air Tank, 110/120 V, 50/60 Hz $9,911.00 400 Gallon Air Tank, 220/240 V, 50/60 Hz $9,911.00 Accessory Kit
(required sample line for oxygen analyzer
and monitor configurations)
$285.00 Accessory Kit
(interconnecting hoses/fittings, oxygen
regulator and oxygen filter) [For use with TA152-1]
$4,016.00 Accessory Kit for HMI Units
(interconnecting hoses/fittings, isolation
valve with oxygen filter & oxygen regulator)
[For use with TA152-1]
$4,663.00 Accessory Kit
(interconnecting hoses/fittings,
oxygen filter and oxygen regulator)
[For use with TA153-1]
$4,006.00 Accessory Kit for HMI Units
(interconnecting hoses/fittings, isolation valve
with oxygen filter and oxygen regulator)
[For use with TA153-1]
$4,653.00 Accessory Kit
(10 ft stainless braided oxygen hose -
from oxygen regulator to use point)
$699.00 Carbon Filter Add-On Kit $2,033.00 Oxygen Analyzer, Handheld,
non-replaceable sensor
$415.00 Oxygen Analyzer, Handheld,
uses replaceable sensor (AN075-1)
$815.00 Oxygen Sensor for AN005-1 $225.00 Flowmeter, Alicat, 0-1400 SCFH
(Requires P/N EL405-0024)
$5,574.00 Alicat Power Supply $135.00
